So, you thought that you have failed compiling Tulip on MacOS X? The plugins can’t get loaded? Can’t find the dylib
files?
Look again! Check files inside the lib
directory. Let me show you mine.
[email protected] ~/apps/tulip-3.1.0/lib
$ file *
libtulip: symbolic link to `libtulip-3.1'
libtulip-3.1: Mach-O dynamically linked shared library i386
libtulip-ogl: symbolic link to `libtulip-ogl-3.1'
libtulip-ogl-3.1: Mach-O dynamically linked shared library i386
libtulip-ogl.la: ASCII English text
libtulip-pluginsmanager: symbolic link to `libtulip-pluginsmanager-3.1'
libtulip-pluginsmanager-3.1: Mach-O dynamically linked shared library i386
libtulip-pluginsmanager.la: ASCII English text, with very long lines
libtulip-qt4: symbolic link to `libtulip-qt4-3.1'
libtulip-qt4-3.1: Mach-O dynamically linked shared library i386
libtulip-qt4.la: ASCII English text, with very long lines
libtulip.la: ASCII English text
tlp: directory
Files that have “Mach-O dynamically linked shared library i386” as their description are surely interesting. Why don’t they have a .dylib
extension? You can find a similar “phenomenon” inside the tlp
directory which contains Tulip plugins. Where is the extension gone?
Since Tulip checks for .dylib

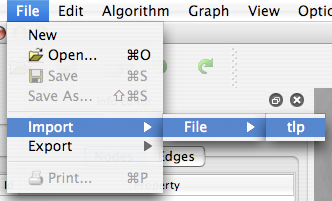

extension on MacOS X, it would not be able to load the plugins. Because they are simply not there. No files with that extension. The application loads very fast since no plugins found. And you also can’t do much since Tulip is (probably) nothing without plugins.

I don’t know why the configuration scripts or the compiler or the linker or whatever it is don’t create shared libraries with .dylib
extension. But as a workaround, I found a simple solution to make Tulip recognize the libraries. Just by simply adding the extension!
One simple command and all is done.
$ ls *-3.1 *-3.1.0 | while read file; do ln -s $file $file.dylib; done
Run that inside the lib
, lib/tlp
, lib/tlp/glyph
, and lib/tlp/view
directories. Maybe inside lib/tlp/designer
too. Don’t worry when it tells “No such file or directory”.
And.. now you have it.

So, you thought that you have failed compiling Tulip on MacOS X? The plugins can’t get loaded? Can’t find the dylib
files?
Look again! Check files inside the lib
directory. Let me show you mine.
[email protected] ~/apps/tulip-3.1.0/lib
$ file *
libtulip: symbolic link to `libtulip-3.1'
libtulip-3.1: Mach-O dynamically linked shared library i386
libtulip-ogl: symbolic link to `libtulip-ogl-3.1'
libtulip-ogl-3.1: Mach-O dynamically linked shared library i386
libtulip-ogl.la: ASCII English text
libtulip-pluginsmanager: symbolic link to `libtulip-pluginsmanager-3.1'
libtulip-pluginsmanager-3.1: Mach-O dynamically linked shared library i386
libtulip-pluginsmanager.la: ASCII English text, with very long lines
libtulip-qt4: symbolic link to `libtulip-qt4-3.1'
libtulip-qt4-3.1: Mach-O dynamically linked shared library i386
libtulip-qt4.la: ASCII English text, with very long lines
libtulip.la: ASCII English text
tlp: directory
Files that have “Mach-O dynamically linked shared library i386” as their description are surely interesting. Why don’t they have a .dylib
extension? You can find a similar “phenomenon” inside the tlp
directory which contains Tulip plugins. Where is the extension gone?
Since Tulip checks for .dylib
extension on MacOS X, it would not be able to load the plugins. Because they are simply not there. No files with that extension. The application loads very fast since no plugins found. And you also can’t do much since Tulip is (probably) nothing without plugins.

I don’t know why the configuration scripts or the compiler or the linker or whatever it is don’t create shared libraries with .dylib
extension. But as a workaround, I found a simple solution to make Tulip recognize the libraries. Just by simply adding the extension!
One simple command and all is done.
$ ls *-3.1 *-3.1.0 | while read file; do ln -s $file $file.dylib; done
Run that inside the lib
, lib/tlp
, lib/tlp/glyph
, and lib/tlp/view
directories. Maybe inside lib/tlp/designer
too. Don’t worry when it tells “No such file or directory”.
And.. now you have it.

So, you thought that you have failed compiling Tulip on MacOS X? The plugins can’t get loaded? Can’t find the dylib
files?
Look again! Check files inside the lib
directory. Let me show you mine.
[email protected] ~/apps/tulip-3.1.0/lib
$ file *
libtulip: symbolic link to `libtulip-3.1'
libtulip-3.1: Mach-O dynamically linked shared library i386
libtulip-ogl: symbolic link to `libtulip-ogl-3.1'
libtulip-ogl-3.1: Mach-O dynamically linked shared library i386
libtulip-ogl.la: ASCII English text
libtulip-pluginsmanager: symbolic link to `libtulip-pluginsmanager-3.1'
libtulip-pluginsmanager-3.1: Mach-O dynamically linked shared library i386
libtulip-pluginsmanager.la: ASCII English text, with very long lines
libtulip-qt4: symbolic link to `libtulip-qt4-3.1'
libtulip-qt4-3.1: Mach-O dynamically linked shared library i386
libtulip-qt4.la: ASCII English text, with very long lines
libtulip.la: ASCII English text
tlp: directory
Files that have “Mach-O dynamically linked shared library i386” as their description are surely interesting. Why don’t they have a .dylib
extension? You can find a similar “phenomenon” inside the tlp
directory which contains Tulip plugins. Where is the extension gone?
Since Tulip checks for .dylib
extension on MacOS X, it would not be able to load the plugins. Because they are simply not there. No files with that extension. The application loads very fast since no plugins found. And you also can’t do much since Tulip is (probably) nothing without plugins.

I don’t know why the configuration scripts or the compiler or the linker or whatever it is don’t create shared libraries with .dylib
extension. But as a workaround, I found a simple solution to make Tulip recognize the libraries. Just by simply adding the extension!
One simple command and all is done.
$ ls *-3.1 *-3.1.0 | while read file; do ln -s $file $file.dylib; done
Run that inside the lib
, lib/tlp
, lib/tlp/glyph
, and lib/tlp/view
directories. Maybe inside lib/tlp/designer
too. Don’t worry when it tells “No such file or directory”.
And.. now you have it.

After digging Tulip‘s code for several days, I still couldn’t find out how to load and run a plugin. This afternoon, my thesis project assistant sent me a working sample code that does what I want! Only in one or two days I guess. Oh God, he’s so fast!
This is how it’s done.
-
Initialize Tulip. At least I can figure this out myself 🙂
tlp::initTulipLib();
tlp::loadPlugins();
-
Check the existence of a plugin.
string layoutName = "Circular";
tlp::LayoutProperty::factory->pluginExists(layoutName);
-
And this is the most important chunk of code that I’m looking for.
tlp::LayoutProperty *myLayout = graph->getProperty<tlp::LayoutProperty>("viewLayout");
graph->computeProperty(layoutName, myLayout, errorMsg);
After that, the layouting is hopefully done. We only need to iterate the vertices and get position of each vertex.
tmp1 = myLayout->getNodeValue(n);
printf("node: %d, x=%f, y=%f, z=%fn", n.id, tmp1.getX(), tmp1.getY(), tmp1.getZ());
After digging Tulip‘s code for several days, I still couldn’t find out how to load and run a plugin. This afternoon, my thesis project assistant sent me a working sample code that does what I want! Only in one or two days I guess. Oh God, he’s so fast!
This is how it’s done.
-
Initialize Tulip. At least I can figure this out myself 🙂
tlp::initTulipLib();
tlp::loadPlugins();
-
Check the existence of a plugin.
string layoutName = "Circular";
tlp::LayoutProperty::factory->pluginExists(layoutName);
-
And this is the most important chunk of code that I’m looking for.
tlp::LayoutProperty *myLayout = graph->getProperty<tlp::LayoutProperty>("viewLayout");
graph->computeProperty(layoutName, myLayout, errorMsg);
After that, the layouting is hopefully done. We only need to iterate the vertices and get position of each vertex.
tmp1 = myLayout->getNodeValue(n);
printf("node: %d, x=%f, y=%f, z=%fn", n.id, tmp1.getX(), tmp1.getY(), tmp1.getZ());
